Detailed Product Description:

For optimum strength to weight ratio in motion control components, aluminum rod

ends are ideal.   These rod ends are fabricated from high-strength aircraft aluminum

alloy (7075-T6) for a yield strength comparable to 300-series stainless steel.  They

are available in a full range of sizes for many and varied high performance applications.

Mechanical Properties:

Rod End Size:                                        1/2”

Rod End Weight:                                 2.2 ounces

Thread Size/Type:                                1/2-20 UNF-3A, Right Hand

Spherical Bearing Inner Diameter:     1/2”

Body Material:                                      7075-T651 Aluminum Alloy

Body Finish:                                         Anodized, Hard, Type III, Red

Rated Load Capacity, Static:              7,596 pounds, ultimate radial

Race:                                                      Carbon steel, protective coated for corrosion resistance.

Ball:                                                        Alloy steel, heat treated, hard chrome plated.

Manufacturer:                                       Aurora, Model # ALMT-8

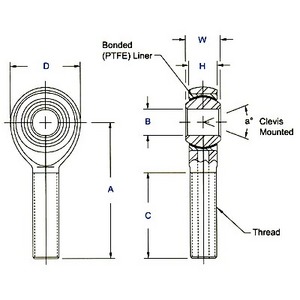

Dimensions (inches):  (see diagram in images below)

A = 2.438   ± 0.015

B = 0.500   +.0015/-.0005

C = 1.437   +0.062/-.031

D = 1.250   ± 0.010

H =  0.500  ± 0.005

W =  0.625 +.000/-.005

Precautions:

We have no control over any part's installation and final application.  The user assumes sole

responsibility for determining the suitability of any part for a specific application. This is

most important when the customer is specifying a part for an application where safety is

a factor.  Incorrect application or installation can result in damage, bodily injury or death.
