Detailed Product Description:

For optimum strength to weight ratio in motion control components, aluminum rod

ends are ideal.   These rod ends are fabricated from high-strength aircraft aluminum

alloy (7075-T6) for a yield strength comparable to 300-series stainless steel.  They

are available in a full range of sizes for many and varied high performance applications.

Mechanical Properties:

Rod End Size:                                        3/4”

Rod End Weight:                                 5.7 ounces

Thread Size/Type:                                3/4-16 UNF-3A, Left Hand

Spherical Bearing Inner Diameter:     3/4”

Body Material:                                      7075-T651 Aluminum Alloy

Body Finish:                                         Anodized, Hard, Type III, Red

Rated Load Capacity, Static:              13,319 pounds, ultimate radial

Race:                                                      Carbon steel, protective coated for corrosion resistance.

Ball:                                                        Alloy steel, heat treated, hard chrome plated.

Manufacturer:                                       Aurora, Model # ALBT-12

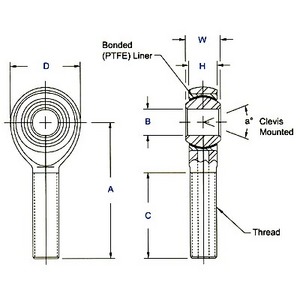

Dimensions (inches):  (see diagram in images below)

A = 2.875   ± 0.015

B = 0.750   +.0015/-.0005

C = 1.750   +0.062/-.031

D = 1.750   ± 0.010

H = 0.687   ± 0.005

W = 0.875  +.000/-.005
